Advantage of IMM dedicated servo drive:
Energy conservation: the precise speed control, to maximize the energy saving purpose.
High precision: the more accurate speed control, product high repetition accuracy.
Professional: designed for the injection molding machine pump control design, commissioning and installation easy.
High reliability: design margin, rugged resolver as speed feedback element to adapt to the use of injection molding machine high temperature, oil, vibration environment.
Low noise: designed for servo drive injection molding machines, fully use the high-performance servo motor, the machine runs, the noise is significantly reduced.
Multiple protection: drive contains an internal multi-level three-dimensional protection measures, tailored for the use of drives, motors, sensors
Online features: containing the CAN communication function, you can achieve multiple pumps in parallel, the confluence of the shunt control | |

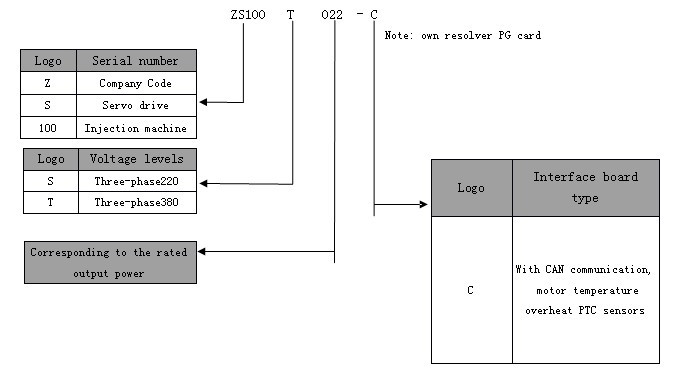

Servo Drive Naming Rules
 |

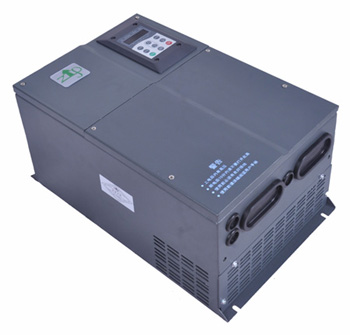

Detailed description ofIMM dedicated servo drive
| Servo drive |
ZS100T
7R5 |
ZS100T
011 |
ZS100T
015 |
ZS100T
018 |
ZS100T
022 |
ZS100T
030 |
ZS100T
037 |
ZS100T
045 |
ZS100T
055 |
Base This
Participate
Number |
Carrier frequency |
0.5kHz~16kHz;Depending on the load characteristics, and automatically adjust the carrier frequency |
| Control mode |
Closed-loop vector control |
| Speed ratio |
1:1000 |
| Steady speed accuracy |
?.02% |
| Overload |
150% rated current 60s, 180% of rated current 5s |
| Starting torque |
0Hz/180% |
|
Power Rate
Electricity
Source |
Voltage frequency |
??380VAC,50/60Hz |
| Voltage range |
340~456VAC (-15%~20%) |
| Rated power |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
30kW |
37kW |
45kW |
55kW |
| Rated output current |
17A |
25A |
32A |
37A |
45A |
60A |
75A |
91A |
112A |
| Rated input current |
20A |
26A |
35A |
38A |
46A |
62A |
76A |
92A |
113A |
|
Control System End
Child |
Input terminals |
Protection of a motor PTC input terminal, five digital input terminal compatible with NPN and PNP input mode, three analog input terminals, which AI1 is, the AI2 input voltage signal, AI3 input voltage or current signal |
| Output terminal |
Three relay output terminal, a NO / NC selectable, two NO, two analog output terminal, respectively, optional 0mA ~ 20mA or 0 ~ 10V |
| Communication terminal |
CAN communication terminal |
| Power output |
10V power output; 13V power output |
| Key Plate |
LED |
Display Parameters |
| Button |
9 keys |
| Ring Border |
Elevation |
2000m below |
| The use of premises |
Indoors, away from direct sunlight, corrosive, flammable gas, oil mist, water vapor and other |
| Ambient temperature |
-10?~40? |
| Vibration |
Less than 0.6g |
| Storage Temperature |
-20?~60? |
| Humidity |
Humidity of 90% RH or less | | |
